Brief introduction

Lifting hook is made of heated hot rolled round steel, which is forged by mould, and it is the most widely used lifting appliance in lifting machinery field. We have the largest 10000T and 6000T oil hydraulic presses and 2000T tensile testing machine in hook manufacturing industry and own various standard of single and double hook forging mould. Our CNC machining center can produce and process various non-standard hooks.

DAFANG is a famous lifting hook manufacturer in China. All hooks from us are tested by UT and MT. Our products serve in major of domestic crane manufacturers and also export to all over the world. Our hooks are widely used in lifting, mining, petroleum, chemical and other industries.

Advantage

The heaviest capacity --10000T oil hydraulic press in hook industry.

One-time shaping by die forging

Own EU CE certification, US ABS certification, China Classification Society certification, etc.

200% load test

Parameters Table

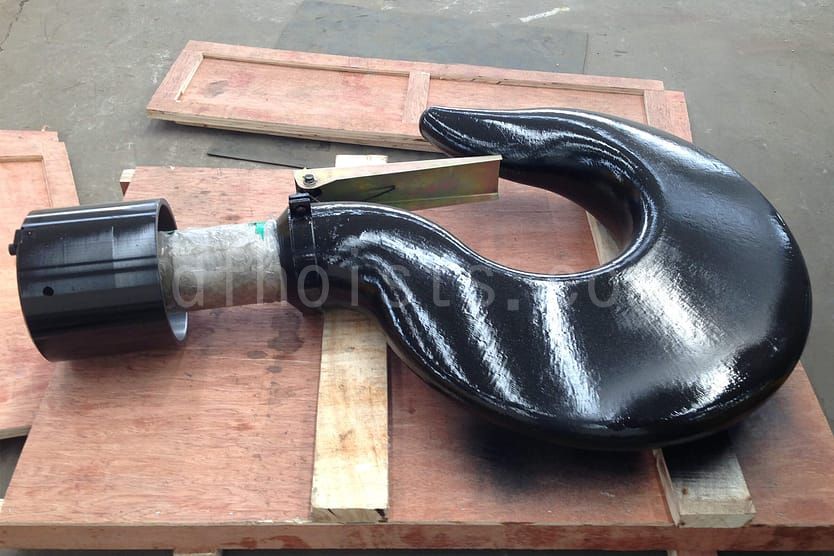

Single hook

Type	A1	A2	A3	ΦD	E3	L1	B1	B2	H1	H2	Weight(kg)
5#	80	63	90	53	165	318	71	60	90	75	13
6#	90	71	101	60	185	380	80	67	100	85	18
10#	112	90	127	75	221	460	100	85	125	106	40
12#	125	100	143	85	252	510	112	95	140	118	48
16#	140	112	160	95	280	595	125	106	160	132	80
20#	160	125	180	106	330	665	140	118	180	150	115
25#	180	140	202	118	360	724	160	132	200	170	140
32#	200	160	225	132	400	810	180	150	224	190	220
40#	224	180	252	150	447	905	200	170	250	212	310
50#	250	200	285	170	485	990	224	190	280	236	430
63#	280	224	320	190	550	1120	250	212	315	265	600
80#	315	250	358	212	598	1270	280	236	355	300	860
100#	355	280	402	236	688	1415	315	265	400	335	1220
125#	400	315	450	265	750	1590	355	300	450	375	1740
160#	450	355	505	300	825	1790	400	335	500	425	2480
200#	500	400	565	335	900	2048	450	375	560	475	3420
250#	560	450	635	375	980	2305	500	425	630	530	4800

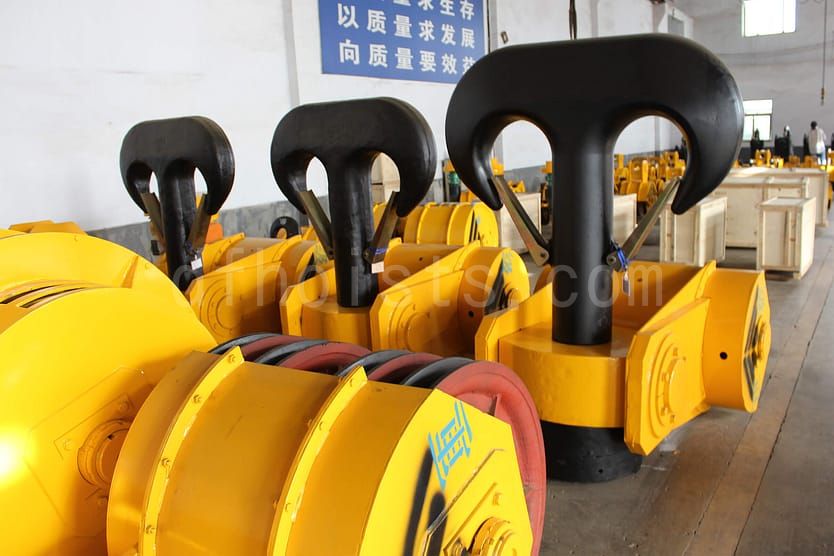

Double hook

Type	ΦD	ΦA	A1	H	H1	H2	B1	B	E	Weight(kg)
10#	75	90	71	505	95	116	75	165	377	36.3
12#	85	100	80	594	106	130	85	185	421	50.5
16#	95	112	90	642	118	146	95	207	471	71.1
20#	106	125	100	698	132	163	106	231	531	99.5
25#	118	140	112	750	150	182	118	258	598	138
32#	132	160	125	830	170	205	132	292	672	197
40#	150	180	140	930	190	230	150	330	754	286
50#	170	200	160	998	212	260	170	370	842	394
63#	190	224	180	1120	236	292	190	414	944	547
80#	212	250	200	1250	265	325	212	462	1062	759
100#	238	280	224	1400	300	364	238	518	1186	1060
125#	265	315	250	1600	335	408	265	580	1330	1491
160#	300	355	280	1800	375	458	300	655	1505	2115
200#	335	400	315	2000	425	515	335	735	1685	3015
250#	375	450	355	2250	475	580	375	825	1885	4268
